API Standard 200m3/H 260m3/H Vacuum Degasser Drilling

Brand Name : ATO

Model Number : ZCQ-1/4

Certification : API

Place of Origin : China

MOQ : 1sets

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2sets/month

Delivery Time : 45 work days

Packaging Details : Wooden

Model : ZCQ-1/4

Discharge Capacity (m3/h) : 200~260

Vacuum Degree (mmHg) : 280~400

Efficiency : ≥95%

Main Motor Power (kW) : 15

Vacuum Pump Motor Power(KW) : 2.2/3(60Hz)

Inlet Diameter (in) : 5

Outlet Diameter (in) : 6

Weight (kg) : 1850

Dimensions (mm) : 1900x900x2200

Contact Now

Solid Control System Drilling Vacuum Degasser Model ZCQ-1/4 API Standard

Product Description

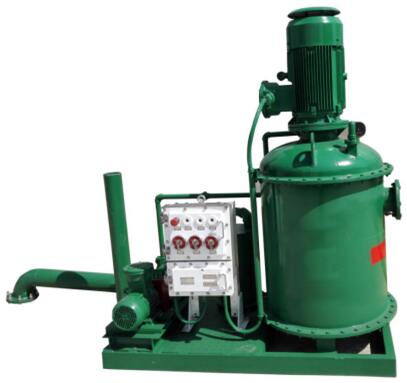

Vacuum degasser is a solid-control device that specifically handles invading drilling fluids, invasive gas in drilling fluid can be quickly removed, recovery drilling fluid proportion and stable drilling fluid performance. It is an indispensable equipment for exploration wells, ultra-deep wells and underbalanced well drilling projects, suitable for supporting various drilling fluid circulation purification systems.

Technical Parameters

Model	ZCQ-1/4	ZCQ-300
Discharge Capacity (m³/h)	200~260	280~320
Vacuum Degree (mmHg)	280~400	380~500
Efficiency	≥95%	≥95%
Main Motor Power (kW)	15	15
Vacuum Pump Motor Power (kW)	2.2/3(60Hz)	3/4(60Hz)
Inlet Diameter (in)	5	8
Outlet Diameter (in)	6	8
Weight (kg)	1850	2800
Dimensions (mm)	1900x900x2200	2200x1200x2000
